C Describe Combination Orientation Geometric Tolerance Applied Datum C Question 5 2 Points Q28644419

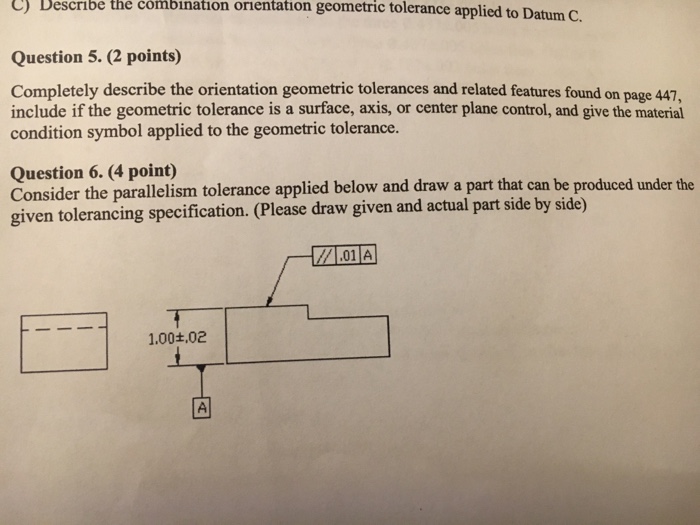

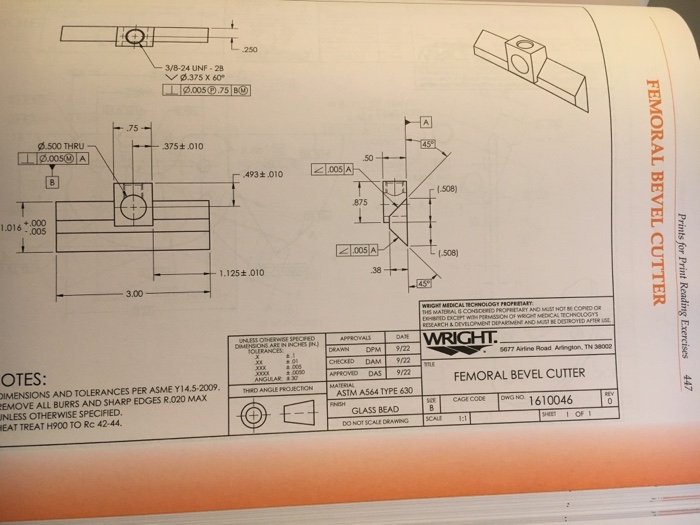

C) Describe the combination orientation geometric tolerance applied to Datum C. Question 5. (2 points) Completely describe the orientation geometric tolerances and related features found on page 447. include if the geometric tolerance is a surface, axis, or center plane control, and give the material condition symbol applied to the geometric tolerance. Question 6. (4 point) Consider the parallelism tolerance applied below and draw a part that can be produced given tolerancing specification. (Please draw given and actual part side by side) under the 01A 11.00+02 Show transcribed image text
